Tri Lok’s, non-rubbing, metal-to-metal seal delivers zero leakage with minimal torque and is certified fire-safe. The seal ring ensures uniform peripheral sealing with the seat, achieving full shutoff regardless of flow direction. Tri Lok offers a solid metal seal ring designed for high temperature and severe applications, ensuring dependable sealing performance throughout the full pressure and temperature range.

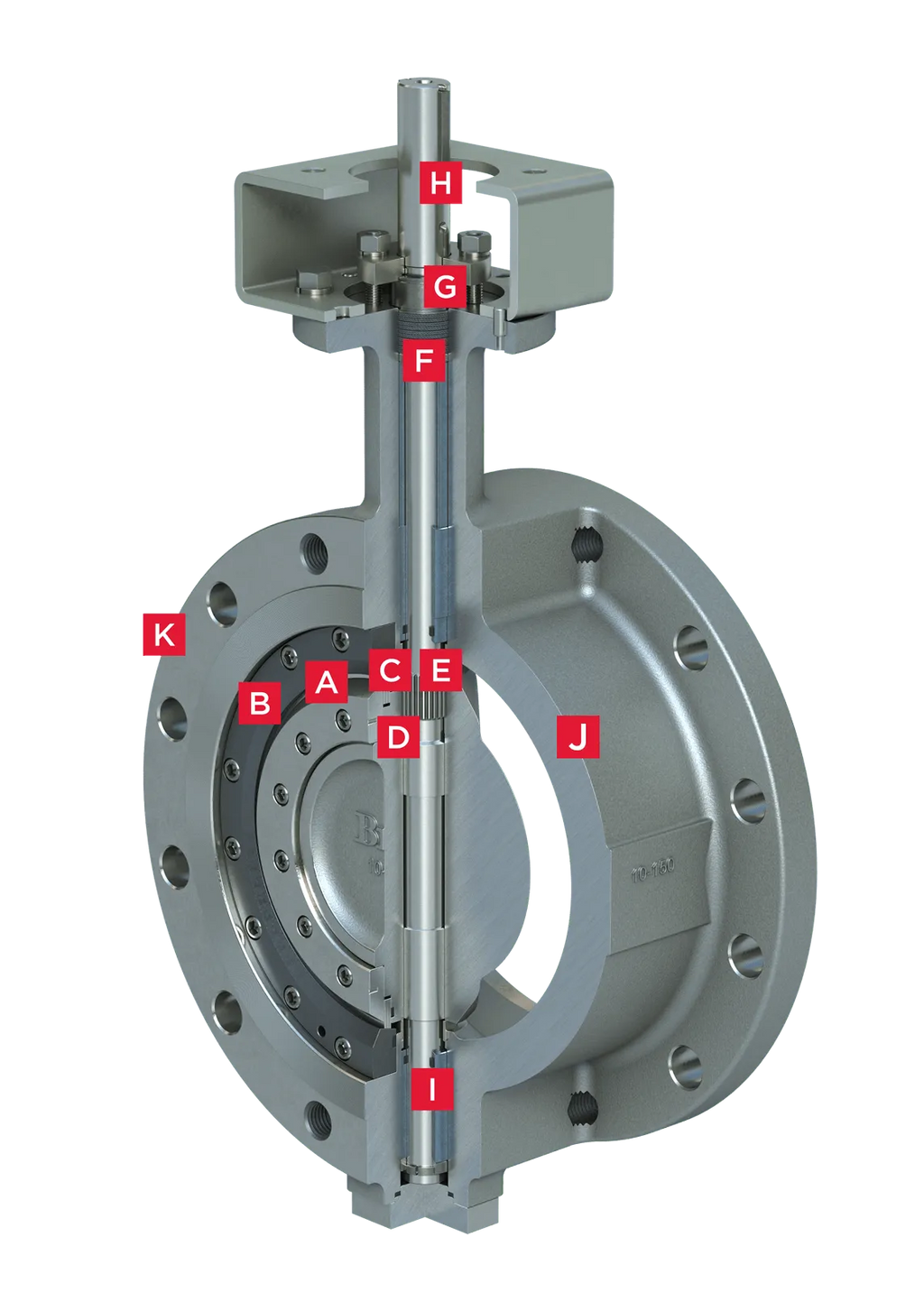

Bray Tri Lok is the only valve in its class with a splined disc/stem connection. The Tri Lok connection allows axial movement of the disc independent of the stem, keeping the seal ring and seat in position and unaffected by temperature fluctuations and pressure effects on the stem. This design prevents the typical misalignment problems of rigidly attached discs and stems to offer maximum strength. Close tolerance engagement between the disc and stem minimizes hysteresis.
Triple Offset Geometry
The Triple offset valve or triple eccentric valve features a stem that is offset on both the X (1) and Y (2) axis of the butterfly valves center-line. This produces a cam-like motion as the valve operates. The third offset (3) consists of an inclined conical profile machined into the valve sealing surface, allowing rotary engagement and disengagement of the seat and seal ring without interference. This triple offset eliminates all rubbing between the seat and seal ring during valve travel, reducing seat and seal wear and extending cycle life.Once the seat and seal ring are fully engaged, torque is applied in order to create a bi-directional, zero leak, metal-to-metal seal. For this reason, triple offset valves are often defined as "torque-seated" rather than "position-seated" as in the case of resilient or high-performance products.
