Description
Series 3W/3L
Temperature Range
-20°F to 250°F (-29°C to 121°C)
Maximum Allowable Operating Pressure
Maximum 250 psi (17.2 Bar)

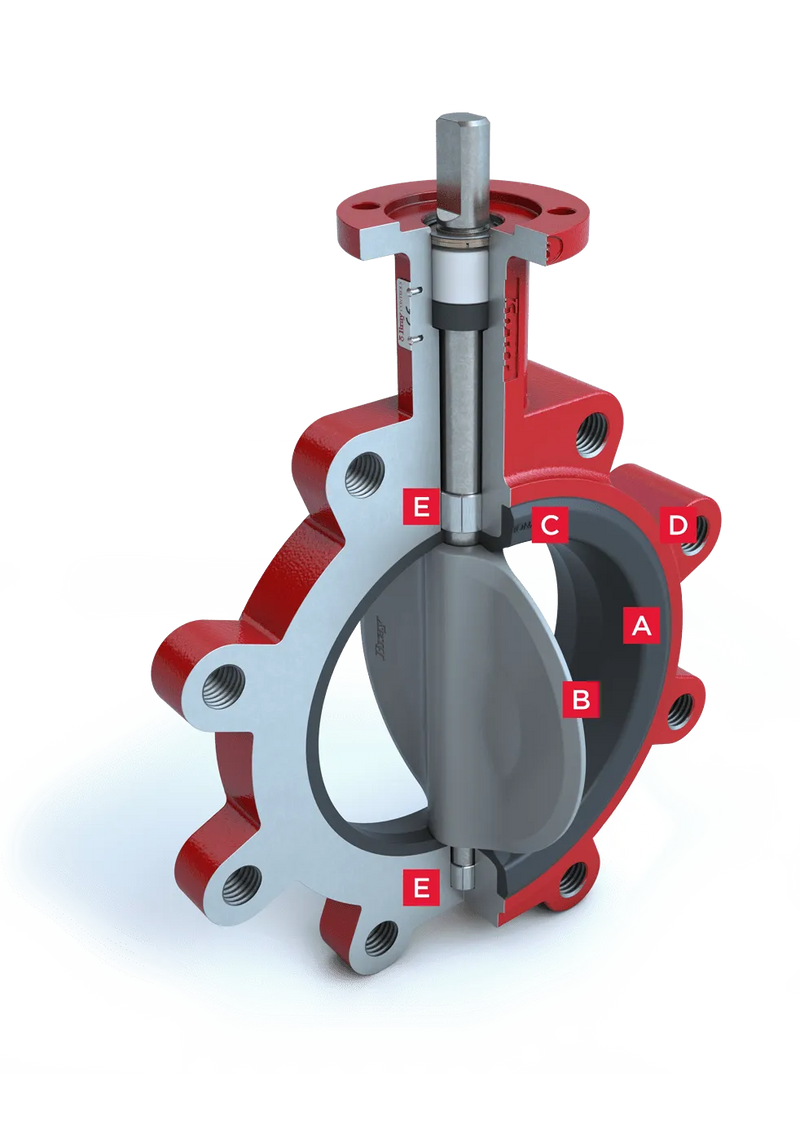

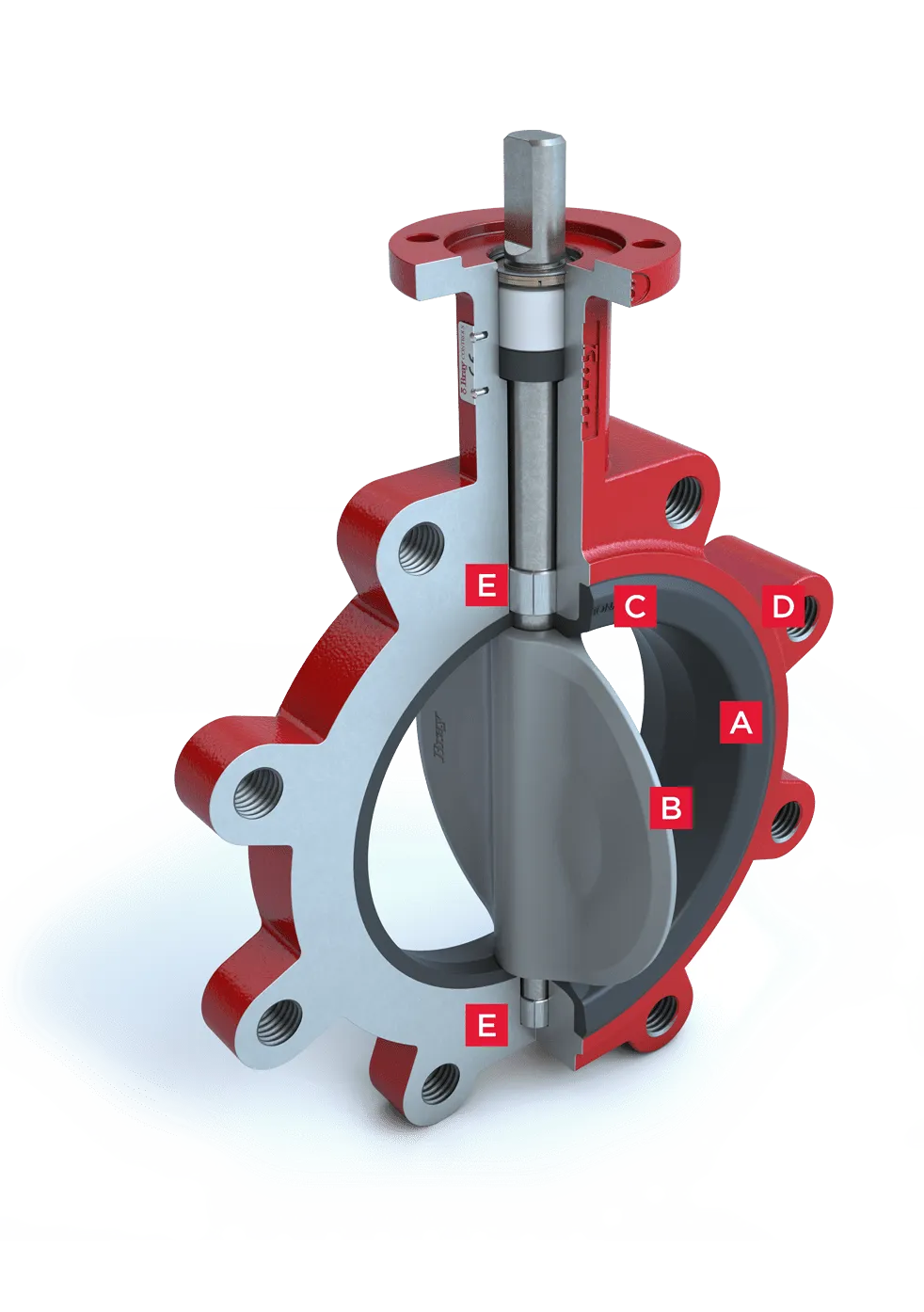

FEATURES AND BENEFITS The Series 3W/3L resilient seated butterfly valves offer:
1 MOLDED-IN SEAT: Tightly controlled molding process produces accurate and repeatable dimensions, which leads to consistently lower torques over the valve’s lifetime.
2 PRECISION PROFILED DISC SEALING EDGE: Extends the valve life by reducing seat wear.
3 ROBUST FLANGE SEALING: Tear-dropped shaped seat face enables tight sealing with a wide variety of industrial flanges.
4 ISO 5211 TOP FLANGE: Direct mounting capability between the valve and Bray actuation reduces package height and complexity.
5 UPPER AND LOWER STEM BEARINGS: Reduce operating torque and increase reliability in high cycle applications.
6 END OF LINE CAPABILITY: Lug style valve allows for sealing at full rated pressure even when the downstream flange is removed.
