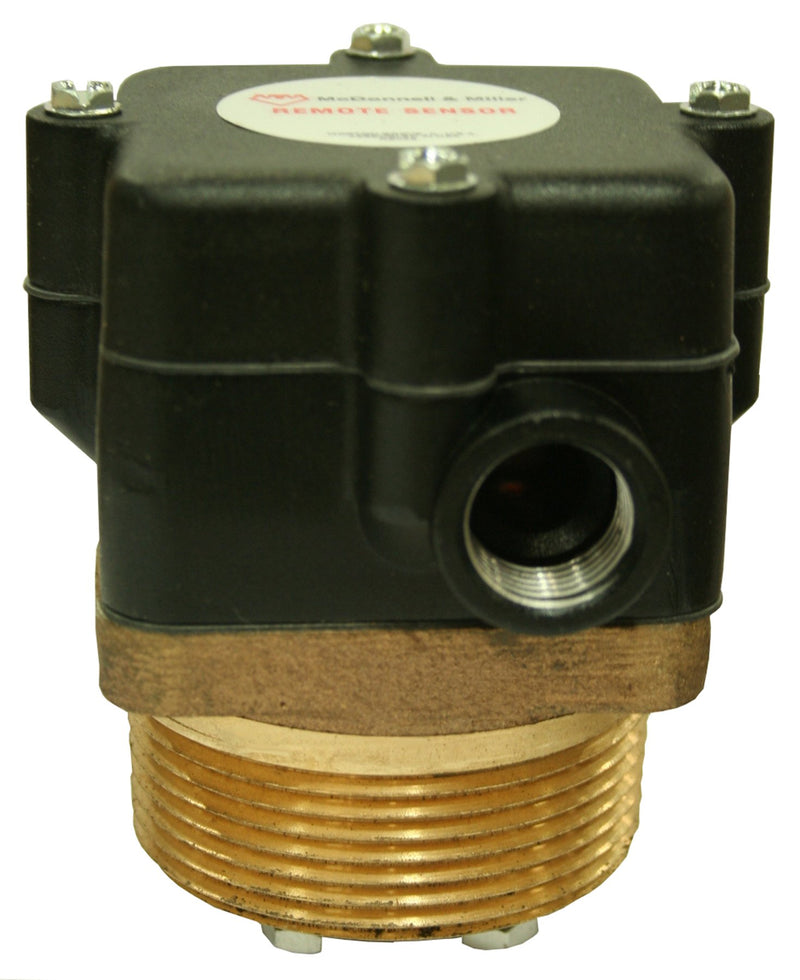

SERIES RS HIGH PRESSURE SENSOR RS-3-BR-1 REMOTE; 3 LEVELS

McDonnell & MillerSKU: 179526

Price:
Sale price$792.86

Description

Series RS – High Pressure Sensors & Probes
For Conductance Actuated Controls

Series RS Sensors
Series-RS-X-BR-1:
• NEMA 4X Enclosure
• For sophisticated multi-level control in tanks, boilers and hydronic systems
• Remote sensors, which thread into the top of the boiler or tank, are available with 1, 2, 3, 4 or 5 probes of varying lengths that can easily be cut to desired set points
• Probe lengths 12 - 72" (2.5 - 183cm) in 12" (2.5cm) increments (purchased separately)
• Control, remote sensor and probe(s) must be ordered separately. Order Spacer S-4 when 2 or more probes greater than 36" (914mm) will be used
• No blow down required
• Maximum Temperature 406°F (208°C)
• Maximum Pressure 250 psig (17.6 kg/cm)
