Description
Low Water Cut-Offs – Electronic
For Steam Boilers

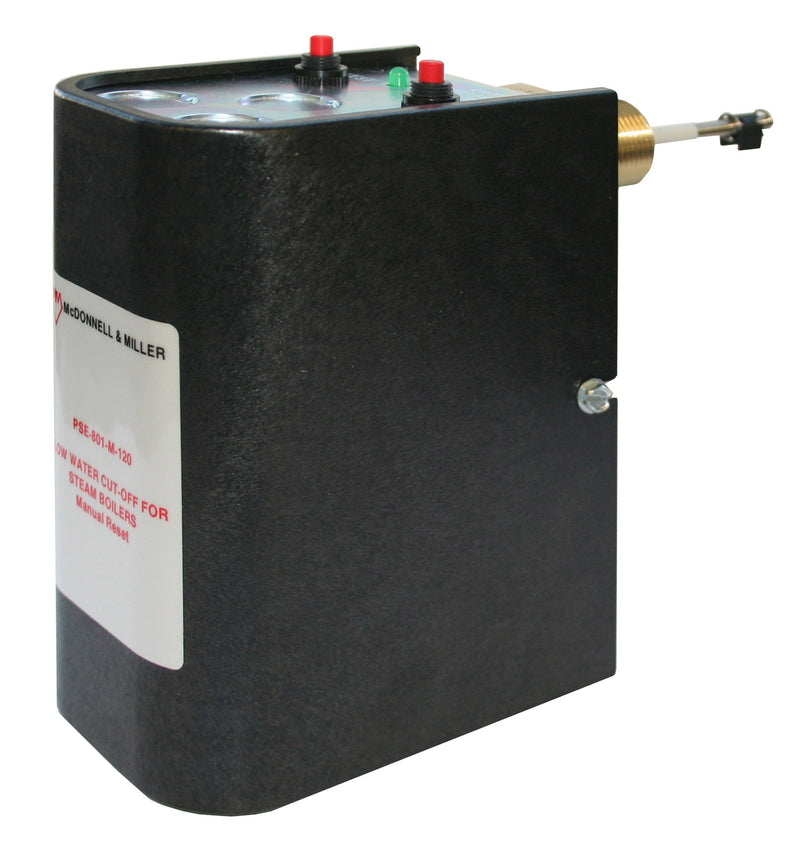

Series PSE-800 - For commercial steam boiler applications
The Series PSE-800 probe type LWCO uses pantented technology to monitor changes in water conductivity. When defined parameters are exceeded the new PSE-800 makes a decision to shut the burner off based on the volatility/variability of the resistance settings. This new patented technology provides the best protection possible without turning off the boiler unless a low water condition exists. As an added measure of safety, the control will turn off the boiler if it recognizes an out-of-water condition when the sensivity threshold is exceeded.
Standard Features
• Green power in on indicating LED
• Red low water indicating LED
• 30 second DOM
• Test button
• Self-Cleaning probe
• No lock out with loss of power if probe is in water
• Provisions to add water feeder of alarm
Models available with:
• 120 VAC
• 24 VAC (meets ANSIZ21. 13a specification)
• ‘U’ probe (extended barrel)
• ‘RX2’ probe (remote)
