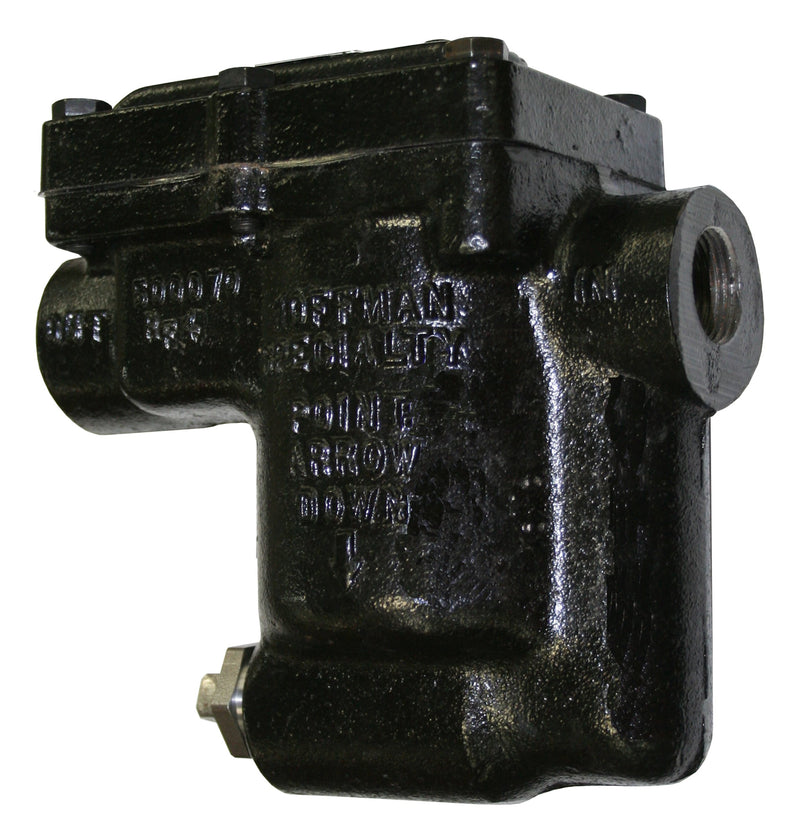

HOFFMAN SERIES B1 - INVERTED BUCKET TRAP

HoffmanSKU: 404301

Price:
Sale price$235.00

Description

Inverted Bucket Steam Traps - Series B

The Series B inverted bucket traps are designed for a wide range of industrial applications including steam mains, laundry and dry cleaning plants, food processing and those that require a lift in the discharge lines.

Series B1
  • Available in sizes 1⁄2" and 3⁄4" NPT
  • Meets Mil specification WW-T-696-E Type I, Style B, Class 1-7
  • Removable covers for easy in-line service
  • Erosion resistant covers
  • Stainless steel internal components
  • Resistant to moderate water hammer
  • Optional built-in thermic vent for faster heating
  • Optional built-in strainer to reduce the number of piping connections
  • Maximum capacities to 1700 lbs/hr. (771 kg/hr.)
  • Maximum temperature 406°F (208°C)
  • Maximum operating pressure 250 psig (17.3 bar)

***Other sizes and pressure ranges available upon request - Please contact us for a quote.
